Requesting a Full Disclosure Report for Holter Studies

Overview

This guide provides step-by-step instructions for users with appropriate permissions to generate a Full Disclosure Report for an Analysed or Finalised Holter Study on BeatBox.

Follow the steps below to request and receive the Full Disclosure Report.



Steps to Generate a Full Disclosure Report

1. Locate the Desired Holter Study

In the Worklist, locate the Holter study you need:

  • Search by patient details (on the worklist) in the search field:
  1.
    • 1 Worklist Search.png
  • Or use the search function in the top-left corner of the screen:
  1.
    •  2 Search Function.png
    •

2. Navigate to the Report View Page

After locating the study, follow these steps:

  • For an Analysed Holter Study, click on Report.
  • For a Finalised Holter Study, click on Review.



3. Request the Full Disclosure Report

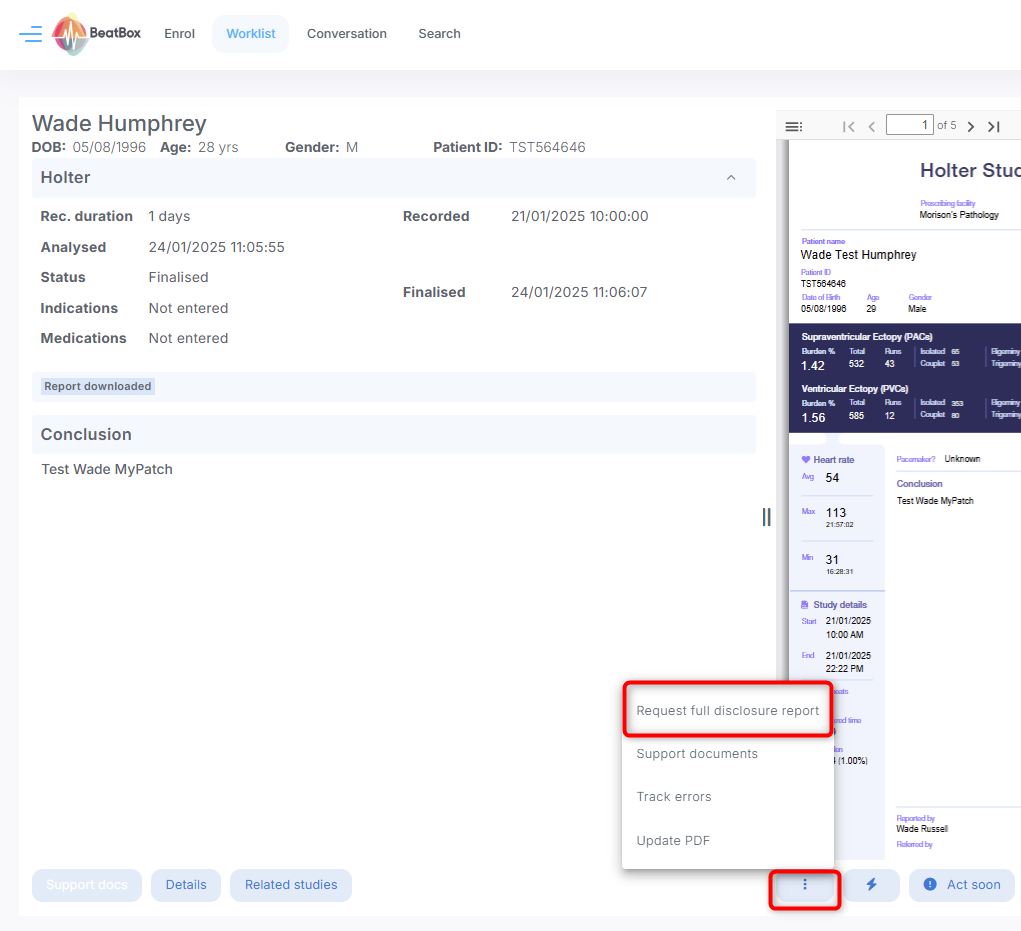

  • In the Report View page, locate and click the Ellipsis (···) icon to open the options menu.
  • From the menu, select Request Full Disclosure Report.

3 Request Full Disclosure.png



4. Confirm the Report Request

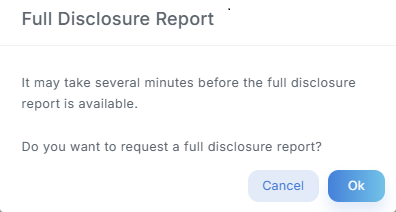

A confirmation dialog box will appear with the following message:

4 Do you want to Request FD Message.png

Click OK to confirm and proceed with the request.



5. Acknowledge the Confirmation

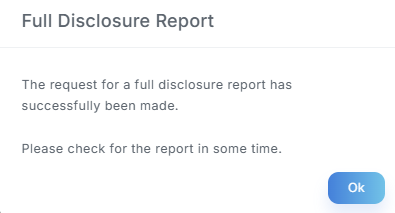

After confirming, a second dialog box will appear with the following message:

5 Request Full Disclosure - Success.png

Click OK to close the dialog box.



6. Wait for the Report to be Processed

The Full Disclosure Report will begin processing after you confirm the request.

Note: It may take up to 15 minutes for the report to complete processing.

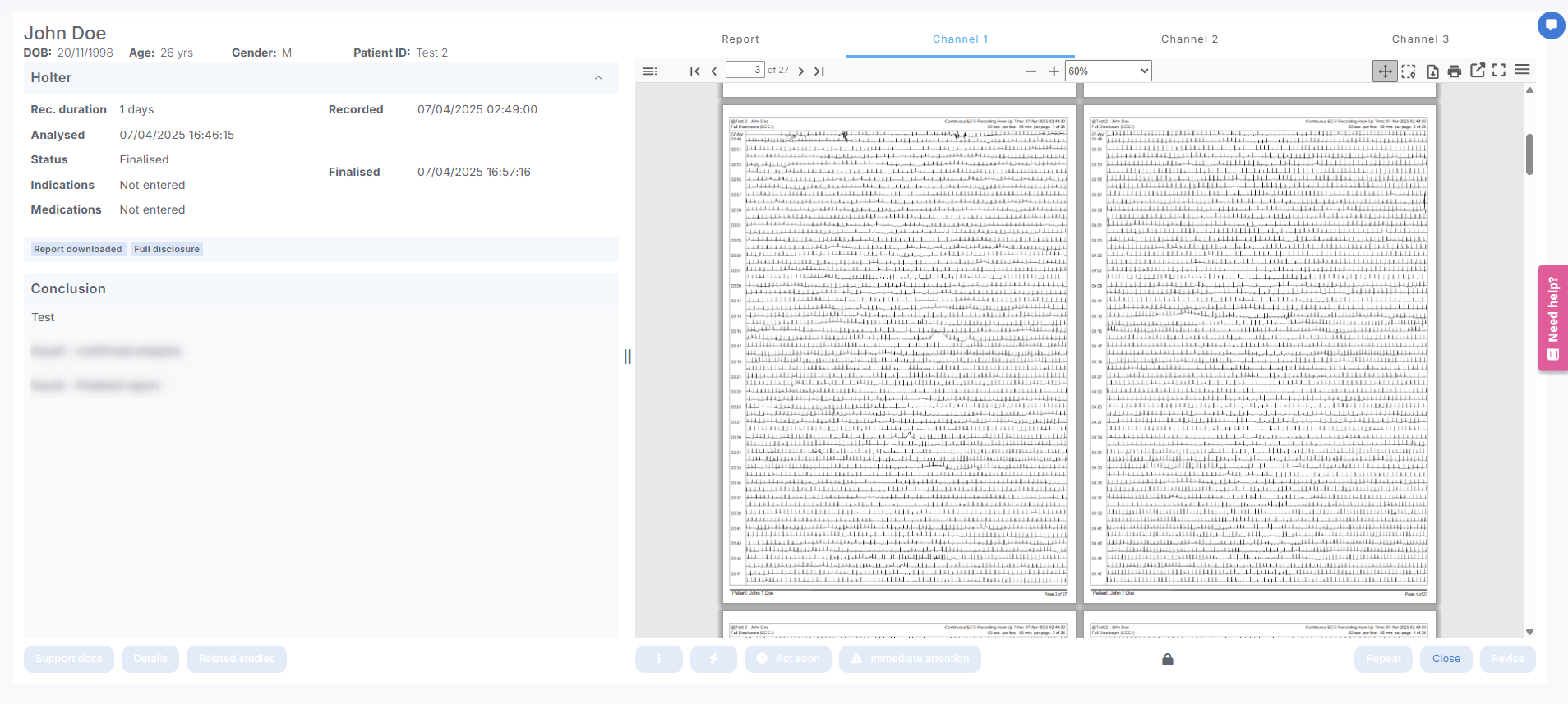

Once the full disclosure report is ready, it will be available in the Report View for your review.

6 Final - FD on Report View.png



7. Updating Patient Details after a Full Disclosure Report is generated.

If you need to update patient details after a Full Disclosure Report has been generated, these changes must also be reflected in the full disclosure report.

  • After the patient details are successfully updated, navigate to each Channel in the report.

7 Go to Channel 1.png



  • For each channel, select Update PDF for Channel to regenerate the report with the updated patient details.

8 Update PDF for Channel 1.png



Important Notes:

  • Permissions Required: Only users with the appropriate permissions can request a Full Disclosure Report. If you do not have the necessary permissions, please contact your account manager to have this feature set up.
  • Processing Time: The report may take up to 15 minutes to be available. Processing times may vary based on the size of the report.
  • Support: If you encounter any issues or have questions, please contact cardioscan support for assistance.
