Selecting a Livetec Device in BeatBox
BeatBox now supports multiple devices from the Livetec range. With this update, users can select from the newly added Livetec devices - Alto, Axis, and Vine - directly in the system. The previous "Livetec" label has been removed from the choose device dropdown to simplify selection.
When enrolling a new patient, you can now choose from the following devices:
- Alto – Two-channel Holter device with up to 7-day recording capability.
- Axis – Three-channel Holter Device with up to 12-day recording capability.
- Vine – Three-channel Holter Device with up to 12-day recording capability.
How to Select and Save a Device
Follow the steps below to select a device during the patient enrolment process:

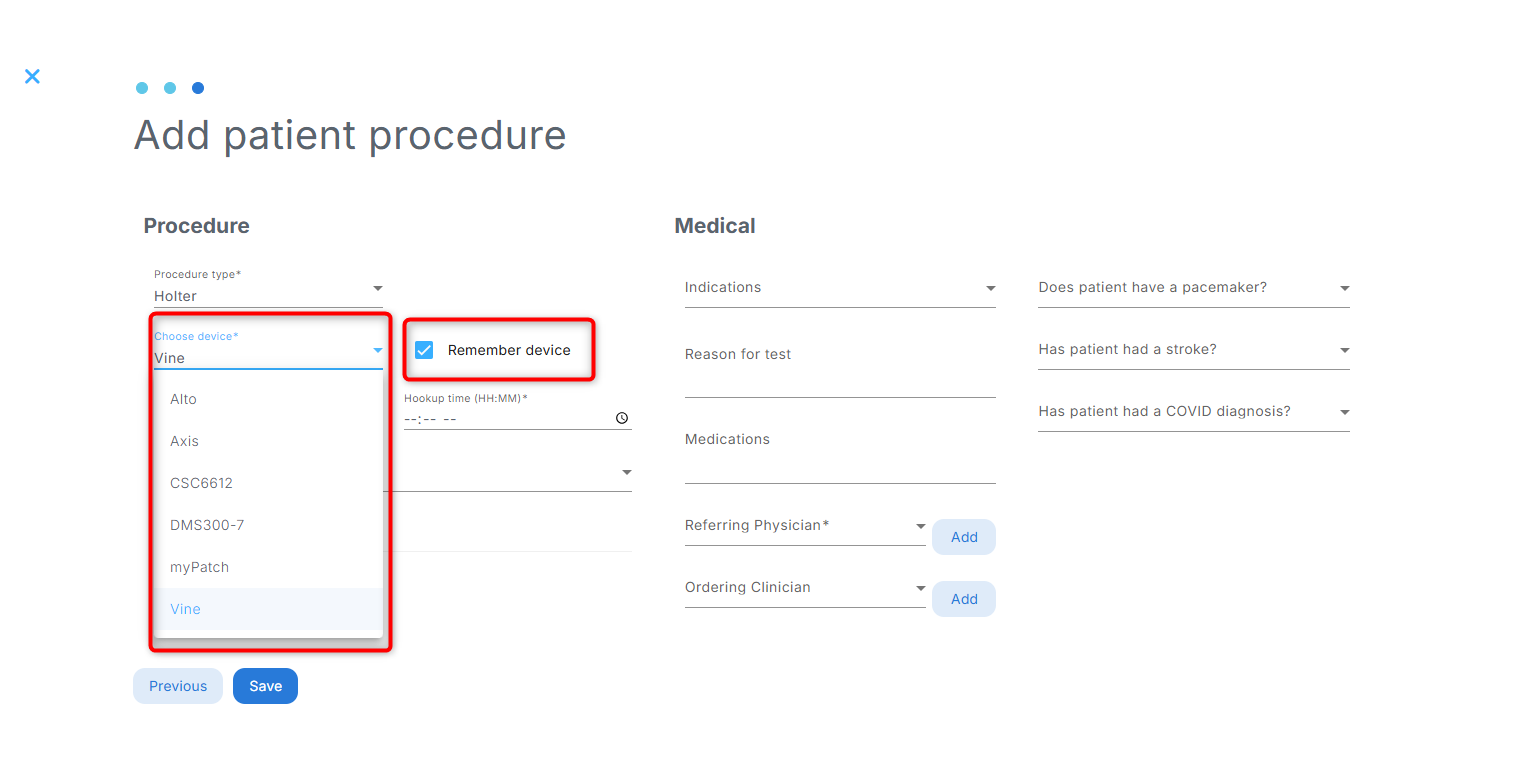

1. Navigate to the Add Patient Procedure Page.
2. Select a Device:
- Click on the Choose Device dropdown.
- Select the appropriate device your organisation is using: Alto, Axis, or Vine.
Note:
- If you select Alto, the recording duration will be limited to 7 days.
- If you select Axis or Vine, the recording duration will be limited to 12 days.
3. Save Your Preference:
- Click the Remember device checkbox to save your selection.
- The selected device will automatically appear the next time you log in.
